The Ceramic Mini Monitor (Price per Pair)

The Ceramic Mini Monitor (Price per Pair)

Regular price $850.00
Regular price Sale price $850.00
Sale Sold out
Color

Low stock

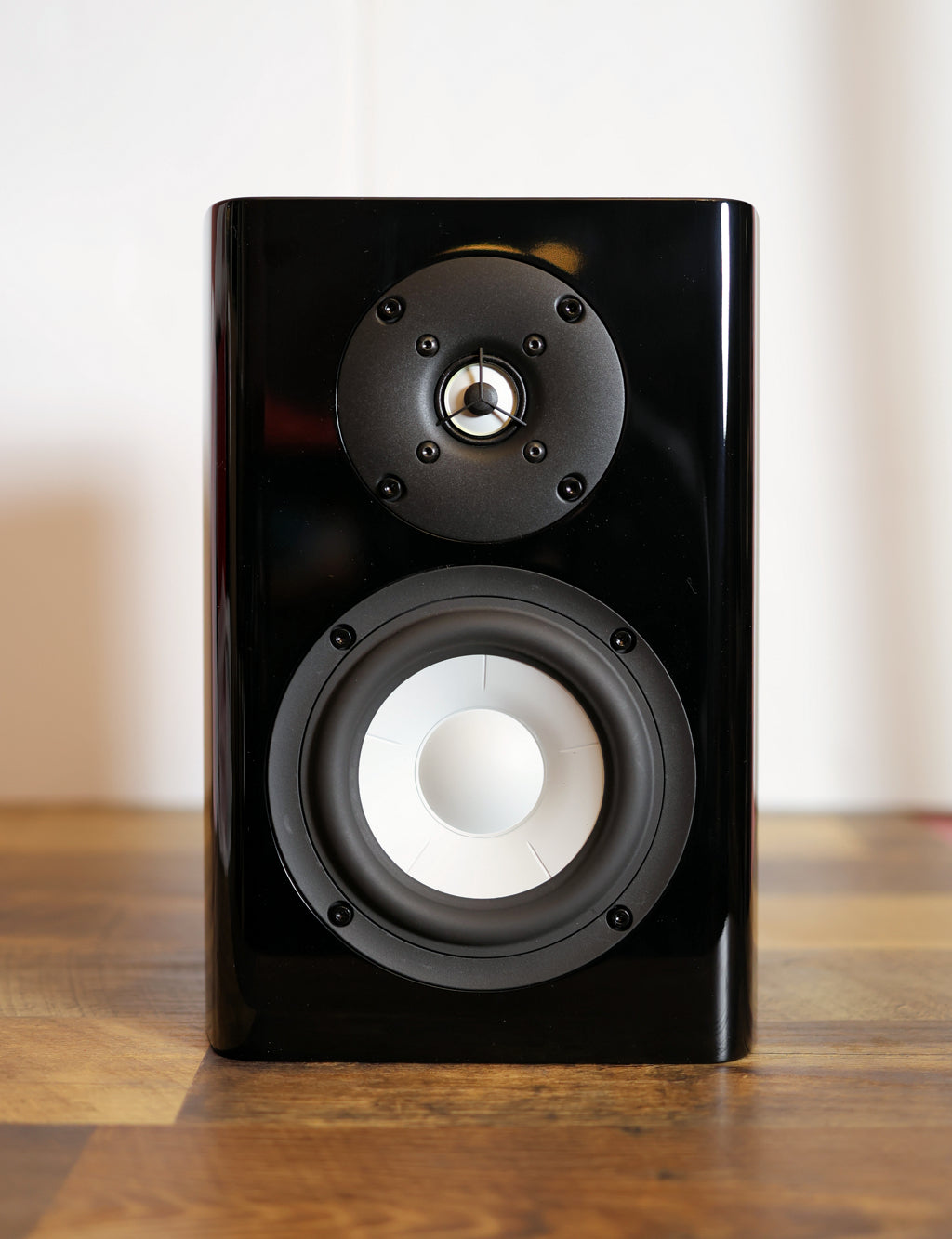

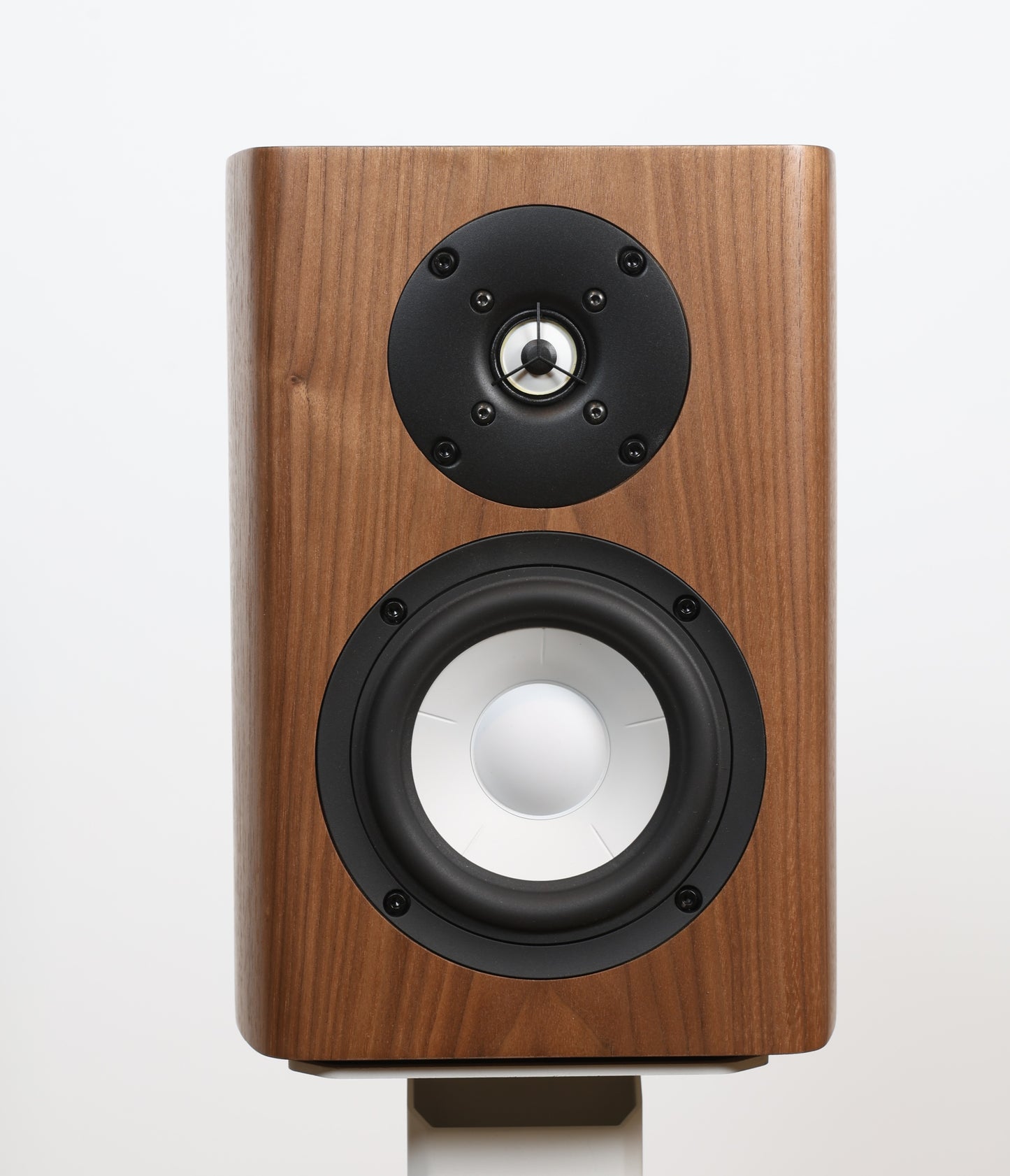

The Ceramic Mini is a 2-way monitor that can function admirably as a modestly-sized stand mount or as a wide-range desktop or surround speaker.  Like all of our offerings, it is designed for broad and even radiation with a highly linear on-axis response.

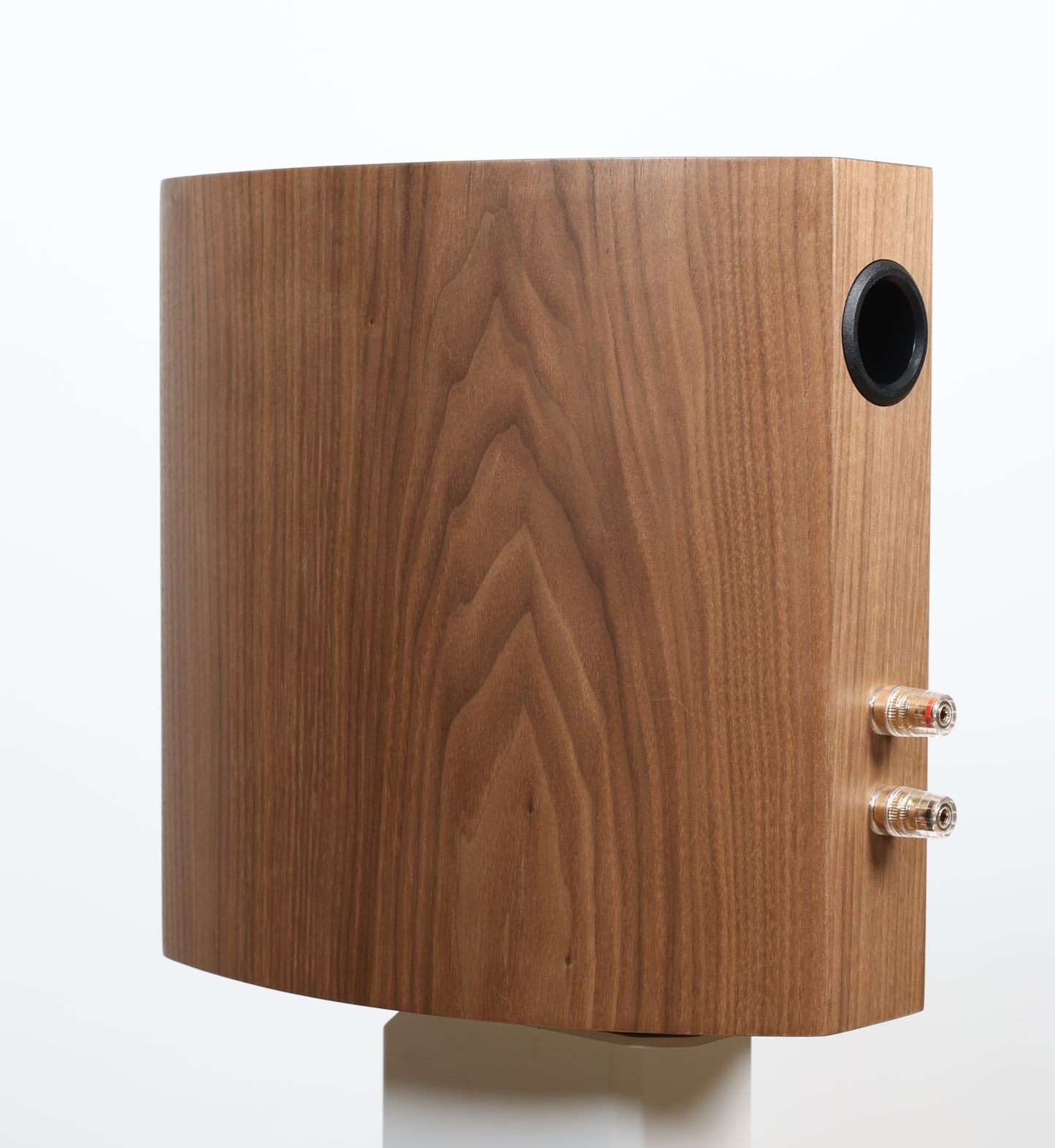

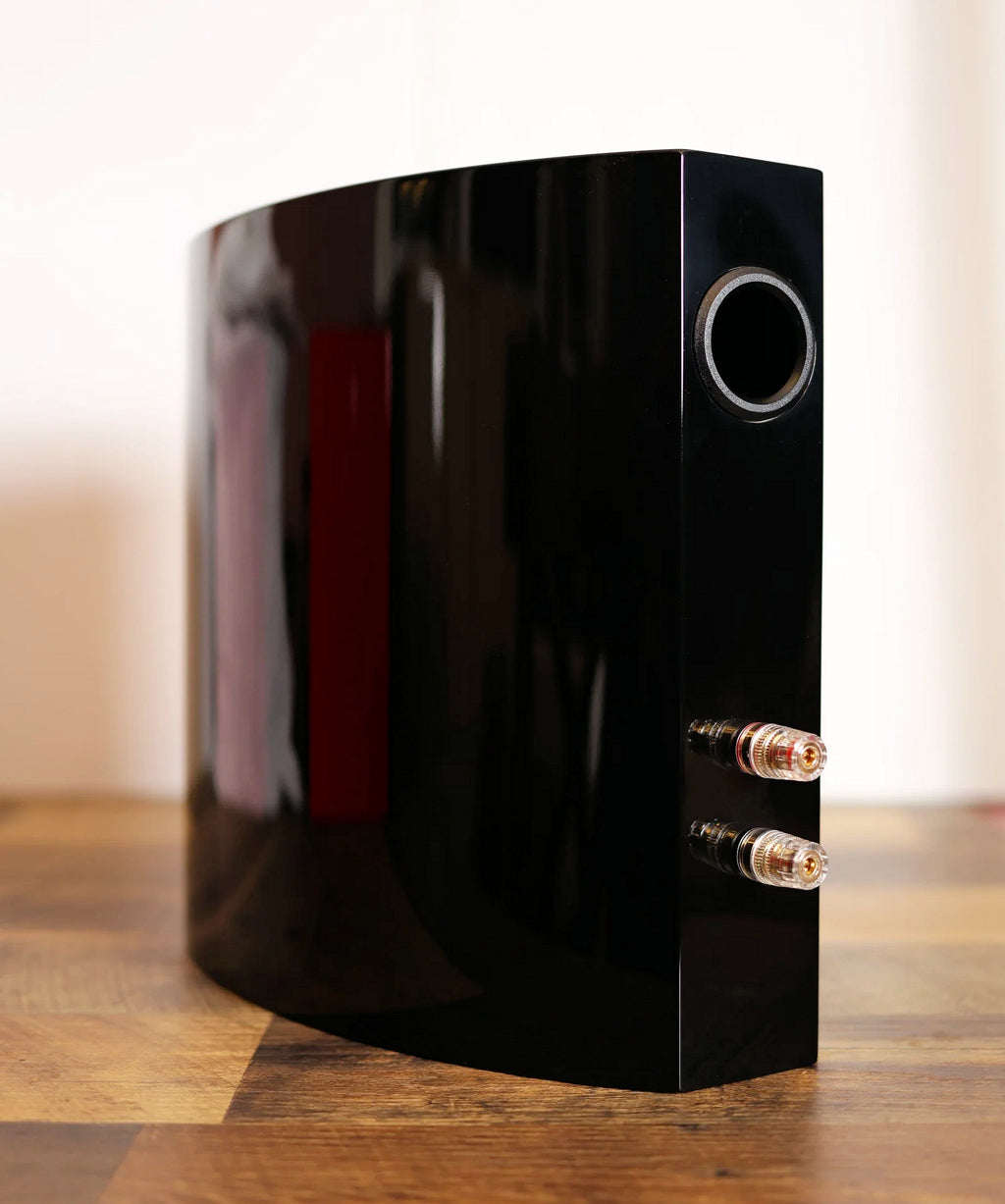

The woofer is the 5-inch ceramic woofer similar to the one in our BMR monitor and shares the same smooth, extended frequency response and surprising bass reach for its size.  The rear port can be sealed if space constraints require mounting flush with a wall.  The 1-inch ceramic tweeter is one of the smoothest available and can be crossed low enough to match the horizontal radiation pattern of the ceramic woofer, without resorting to a waveguide.

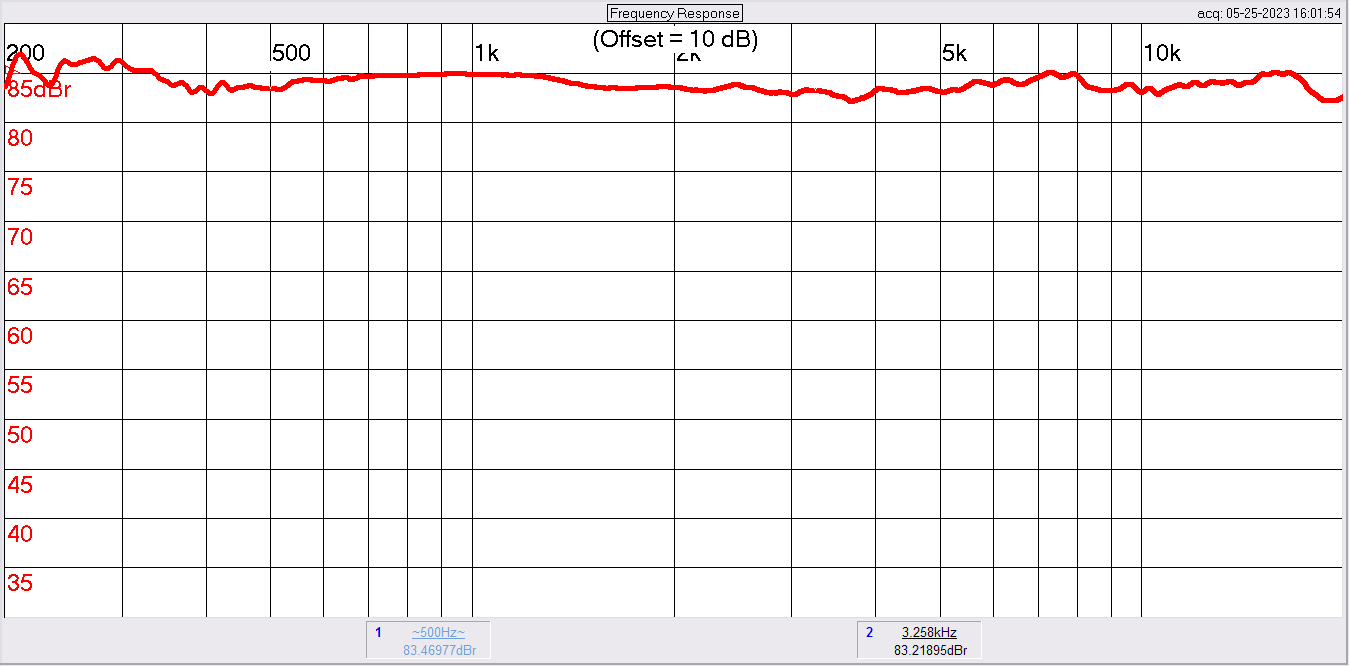

Click here for full measurements of the Ceramic Mini.

Specifications

Cabinet High Gloss Black or Satin Walnut
Tweeter 1" Ceramic Dome Tweeter
Woofer 5" Ceramic Woofer
Frequency Response    Ported: 55 Hz - 20 kHz (+1.5 dB / - 3db) Anechoic
Sealed: 70 Hz - 20 kHz (+1.5 dB/ - 3 dB) Anechoic
Sensitivity 84 dB (2.83v/1M)
Box Alignment Ported or Sealed
Dimensions 12" H x 8.5" W x 11.25" D
Weight 17 lbs
Nominal Impedance 4 Ohms (3.2 Ohms minimum, 15 Ohms maximum)
Crossover Linkwitz-Riley 4th Order Acoustic at 2 kHz
Grill Magnetic Grill
